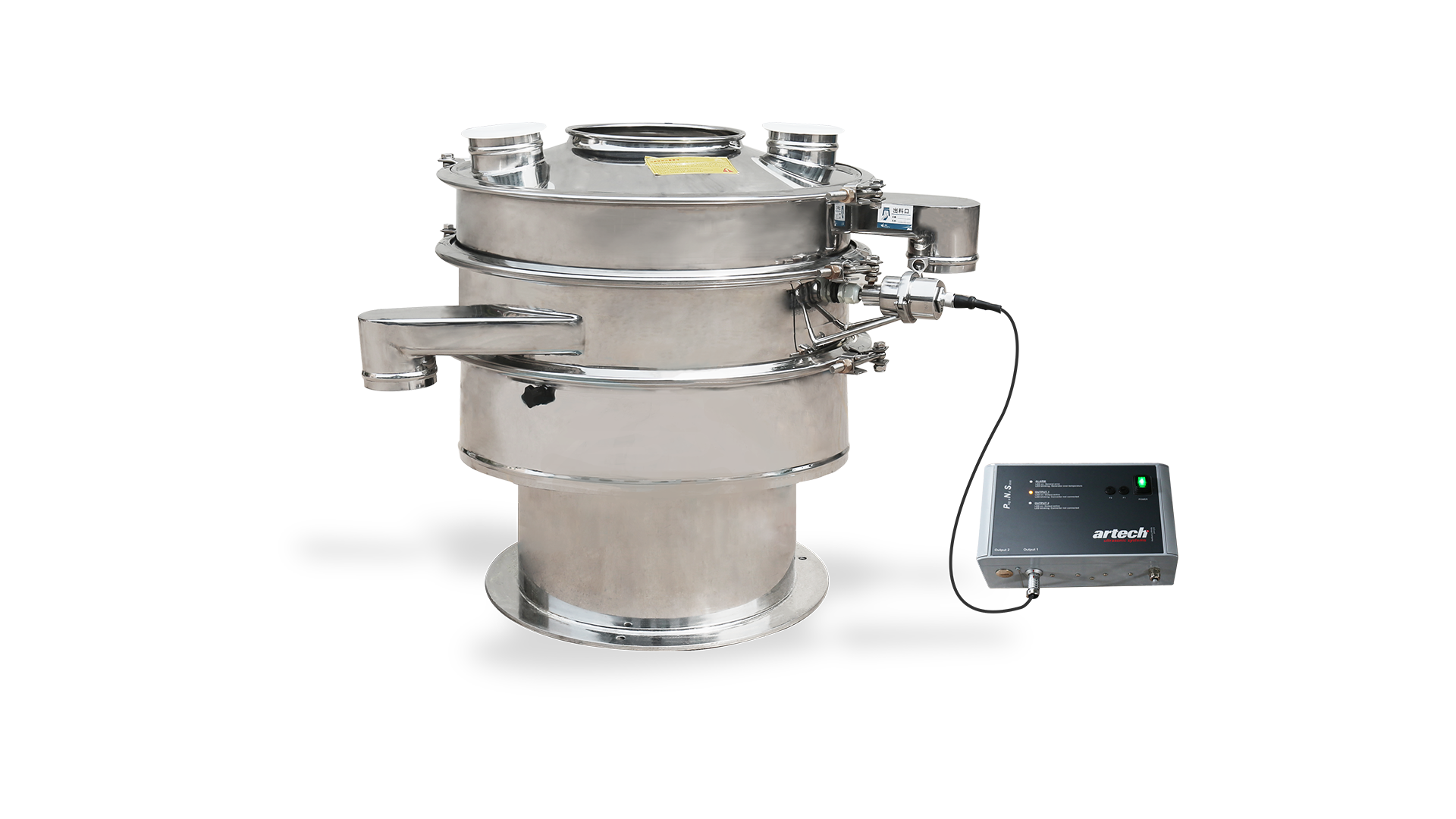

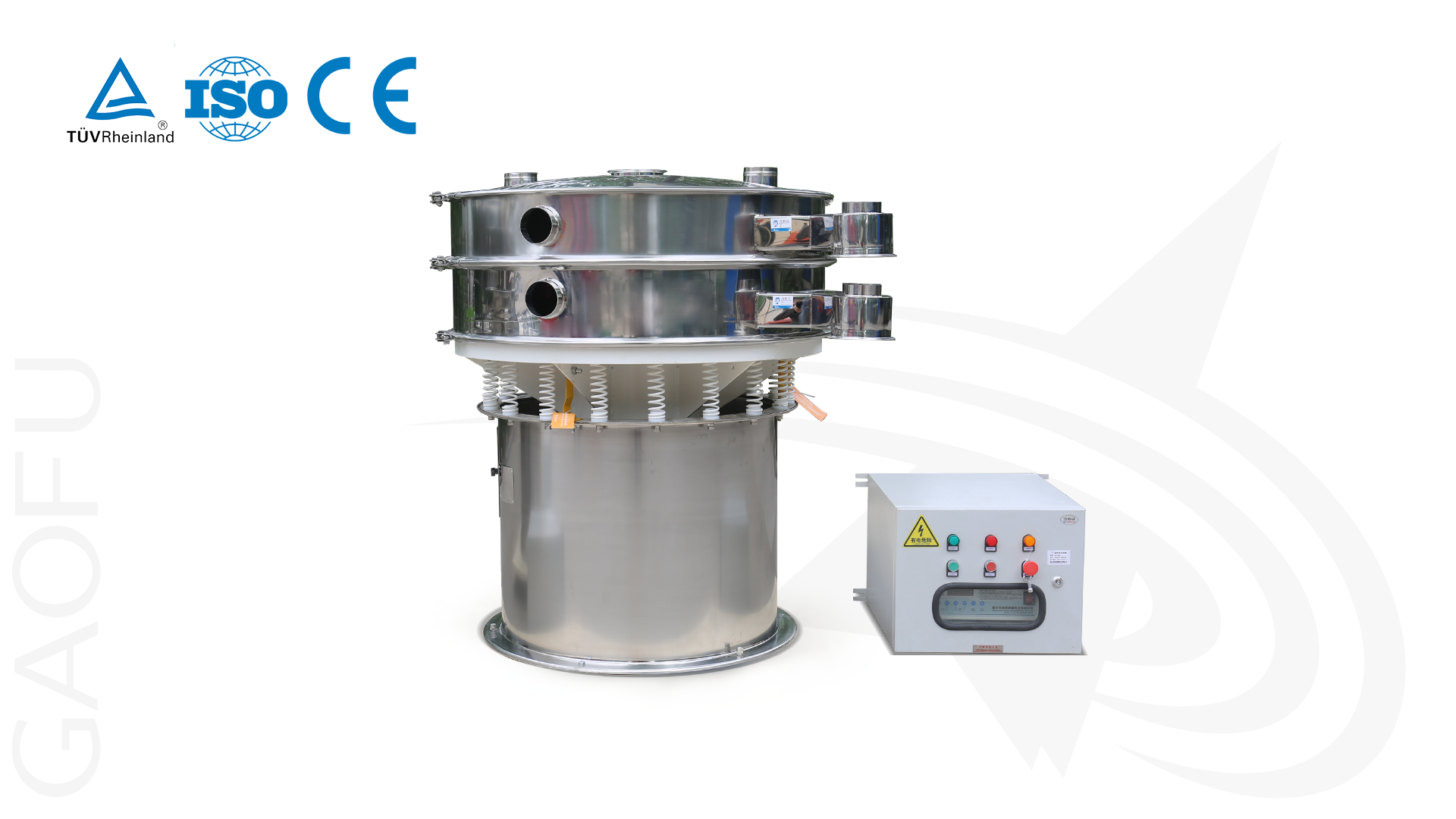

Ultrasonic vibrating sieve

Ultrasonic vibrating screen is a high-precision screening equipment designed for ultrafine powders, high electrostatic and easily agglomerated materials. It generates high-frequency vibration waves through an ultrasonic generator and directly acts on the screen mesh, effectively eliminating material adhesion and blockage problems. The screening accuracy can reach 500 mesh. It combines three-dimensional rotary vibration and ultrasonic micro vibration technology, significantly improving screening efficiency and adapting to complex working conditions such as dry and wet materials, oil containing and lightweight fibers. The equipment is equipped with an intelligent adjustment system, which can flexibly control vibration parameters and has advantages such as anti blocking network, long life, and low energy consumption. It is widely used in industries such as new energy (lithium battery materials), pharmaceuticals, chemicals, and food to meet the needs of fine sorting of ultrafine powders.

Rotating vibrating screen application materials

Lithium iron phosphate, ternary materials, lithium nickel cobalt manganate, lithium nickel cobalt aluminate, lithium manganate, lithium cobalt oxide, lithium hexafluorophosphate, graphite, pole piece recycling, metal microsilica powder, crystalline silicon micropowder, fused silica powder, spherical silica powder, spherical silica, Chinese and Western raw materials, Western medicine, coffee powder, cocoa powder, condiments, food additives, metal powder,copper, iron, aluminum, lead, zinc, alloy powder, magnetic materials, metal powder, alumina , corundum, emery, quartz sand glass powder beads, abrasive materials, plastics, rubber, resins, dyes, fillers, chemicals, activated carbon, wood powder, sawdust, charcoal, fiber materials.

Working principle of rotary vibrating screen

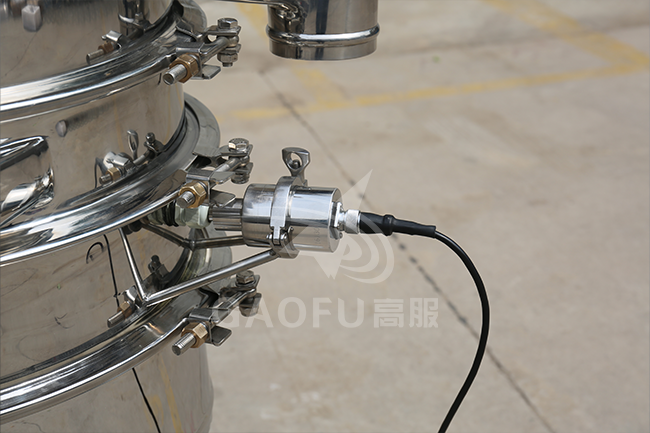

Ultrasonic vibrating screen converts 220V, 50Hz or 110V, 60Hz electric energy into 36KHz high-frequency electric energy, inputs it into ultrasonic transducer, and converts it into 36KHz mechanical vibration. The generated power ultrasonic wave makes the screen vibrate at high frequency. While the material on the screen is doing low-frequency rotation and vibration, it is superimposed with ultrasonic vibration, which can not only prevent the mesh from being blocked, but also improve the output and quality of the screening machine, so as to achieve the purpose of efficient screening and cleaning, making the screening of ultrafine powder easy. Based on the traditional vibrating screen, this system introduces a low-amplitude, high-frequency ultrasonic vibration wave (mechanical wave) on the screen to improve the screening performance of ultrafine particles. It is especially suitable for users with high added value fine separation.

Advantages of rotary vibrating screen

1. Gaofu combines ultrasound and vibrating screen to solve the problem of difficult screening of strongly adsorbent materials.

2. Solved the screening problem of materials with strong adsorption, easy agglomeration, strong viscosity, high static electricity, high density, ultrafine powder and other characteristics.

3. The screening accuracy can be improved by over 80%, and the yield can be increased by 2-5 times.

4. Changed the pollution and wear caused by conventional screening methods on powders, and greatly reduced the noise of screening machines.

5. 220V, 50Hz electrical energy is converted into 36KHz mechanical vibration to achieve rapid screening and cleaning of the mesh, making ultrafine powder screening easy.

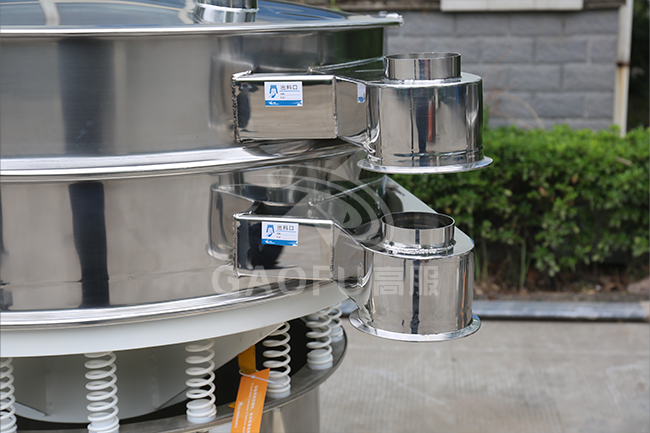

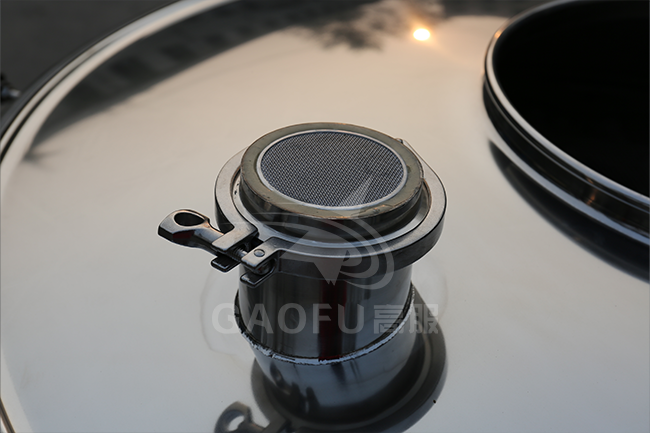

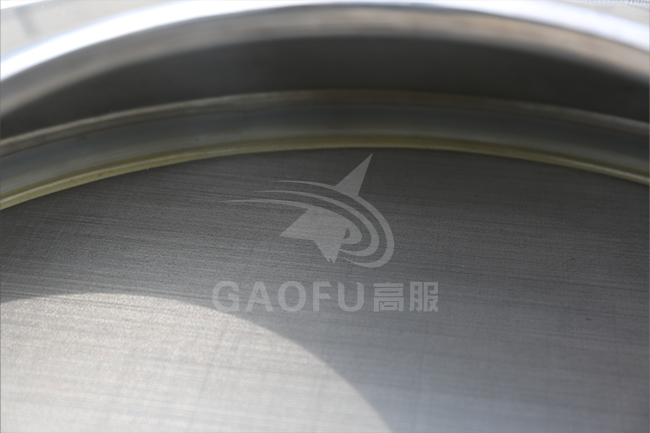

Realistic picture of ultrasonic vibrating sieve.

Certificate.

Gaofu factory area.
