Ultrasonic tumbler vibrating screen

Ultrasonic vibrating screen is a new type of screening equipment that is equipped with an ultrasonic high-frequency vibration device on the basis of a swinging vibrating screen. Through the dual effect of mechanical swing and ultrasonic resonance, it effectively solves the problem of clogging of ultrafine powders, and improves screening efficiency by more than twice. It is particularly suitable for fine classification operations of ultrafine powders.

Ultrasonic tumbler vibrating screen application materials

Lithium iron phosphate, ternary materials, lithium nickel cobalt manganate, lithium nickel cobalt aluminate, lithium manganate, lithium cobalt oxide, lithium hexafluorophosphate, graphite, pole piece recycling, metal microsilica powder, crystalline silicon micropowder, fused silica powder, spherical silica powder, spherical silica, Chinese and Western raw materials, Western medicine, coffee powder, cocoa powder, condiments, food additives, metal powder,copper, iron, aluminum, lead, zinc, alloy powder, magnetic materials, metal powder, alumina , corundum, emery, quartz sand glass powder beads, abrasive materials, plastics, rubber, resins, dyes, fillers, chemicals, activated carbon, wood powder, sawdust, charcoal, fiber materials.

Working principle of ultrasonic swing screen

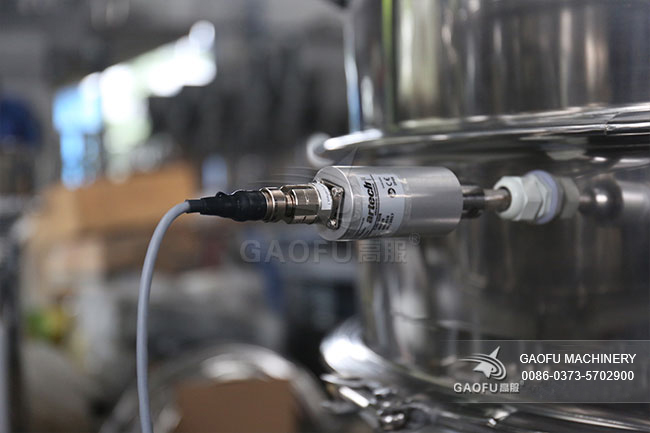

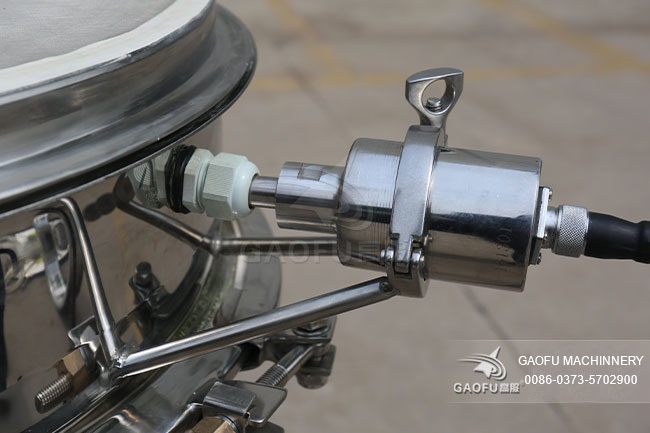

Ultrasonic tumbler vibrating screen converts 220V, 50Hz or 110V, 60Hz electrical energy into 36KHz high-frequency electrical energy, which is input into an ultrasonic transducer and converted into 36KHz mechanical vibration. The generated power ultrasonic waves cause the screen mesh to vibrate at high frequency. The material on the sieve is subjected to low-frequency rotary vibration motion, combined with ultrasonic vibration, which can prevent mesh blockage and improve the output and quality of the screening machine, thereby achieving efficient screening and cleaning of the mesh, making ultrafine powder screening easy. This system introduces a low amplitude, high-frequency ultrasonic vibration wave (mechanical wave) on the sieve based on the traditional vibrating screen to improve the screening performance of ultrafine particles. Especially suitable for users with high added value and fine segmentation.

Advantages of ultrasonic tumbler vibrating screen

1. Gaofu combines ultrasound and vibrating screen to solve the problem of difficult screening of strongly adsorbent materials.

2. Solved the screening problem of materials with strong adsorption, easy agglomeration, strong viscosity, high static electricity, high density, ultrafine powder and other characteristics.

3. The screening accuracy can be improved by over 80%, and the yield can be increased by 2-5 times.

4. Changed the pollution and wear caused by conventional screening methods on powders, and greatly reduced the noise of screening machines.

5. 220V, 50Hz electrical energy is converted into 36KHz mechanical vibration to achieve rapid screening and cleaning of the mesh, making ultrafine powder screening easy.

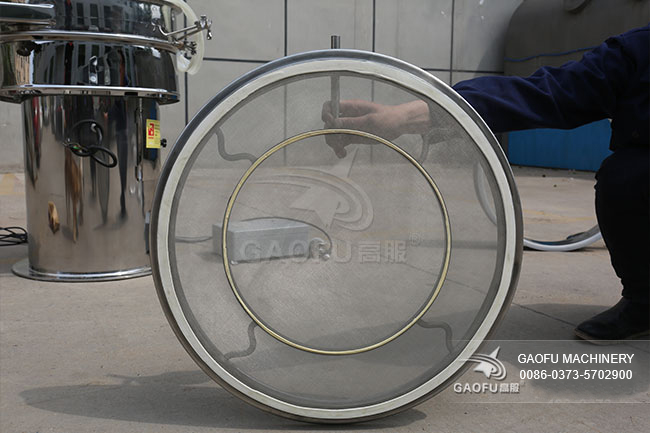

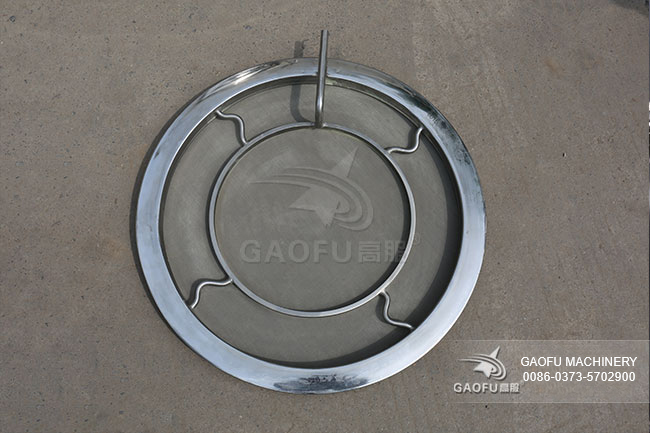

Realistic picture of ultrasonic tumbler vibrating screen.

Certificate.

Gaofu factory area.
