Vertical airflow sieve

Vertical airflow sieve adopts a vertical mesh design, which achieves non resistance screening through a combination of airflow suspension and vibration. Its unique vertical structure prevents the sieve from being compressed by material gravity, and with the assistance of an airflow system, it can effectively avoid clogging problems. It is particularly suitable for the screening needs of high-precision and continuous production, and is an ideal equipment for efficient sorting of ultra light fine powder and fiber materials.

Vertical airflow sieve application materials

Rubber powder, magnetic materials, rubber additives, calcium powder (light calcium, heavy calcium), zinc powder, activated calcium, hawthorn powder, iron oxide black, iron oxide red, traditional Chinese medicine powder, quartz powder, carbon black, silicon dioxide, etc.

Working principle of vertical airflow sieve

The vertical airflow screen abandons the principle of gravitational potential energy operation and adopts the principle of using air as a carrier and kinetic energy as work. The raw material mixture enters the machine body from the airflow inlet and is strengthened by an intelligent turbine, allowing the dispersed monomers of the raw material to pass through the composite screen in an orderly manner and enter the next process in the downwind direction. Unqualified impurities and foreign objects are intercepted and discharged through the automatic slag discharge outlet. Thus, the selection process for online assignments has been completed.

Advantages of vertical airflow sieve

1. Low energy screening equipment that replaces wind selection and airflow classifiers.

2. The LQLS series airflow screening machine is equipped with vibration force for gas mixing atomization and mesh passing, resulting in a high mesh passing rate and slag discharge rate.

3. The LQLS series airflow screening machine is suitable for a wide range of fineness: 80-600 mesh powder materials can be efficiently screened.

4. The product has precise fineness and no mixing phenomenon.

5. The screen mesh is installed vertically, without load, and has a long service life.

6. The screening system operates in a negative pressure semi cycle state without dust pollution.

7. The LQLS series airflow screening machine can be used in conjunction with various grinding machines and grid connected air ducts.

8. The LQLS series airflow screening machine has low noise, low power consumption, continuous operation, and low maintenance rate.

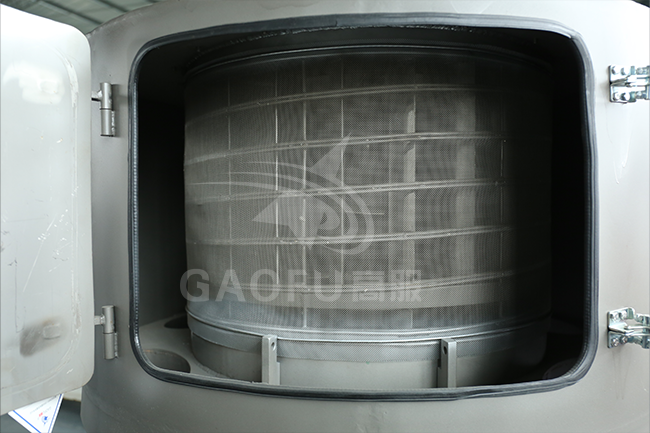

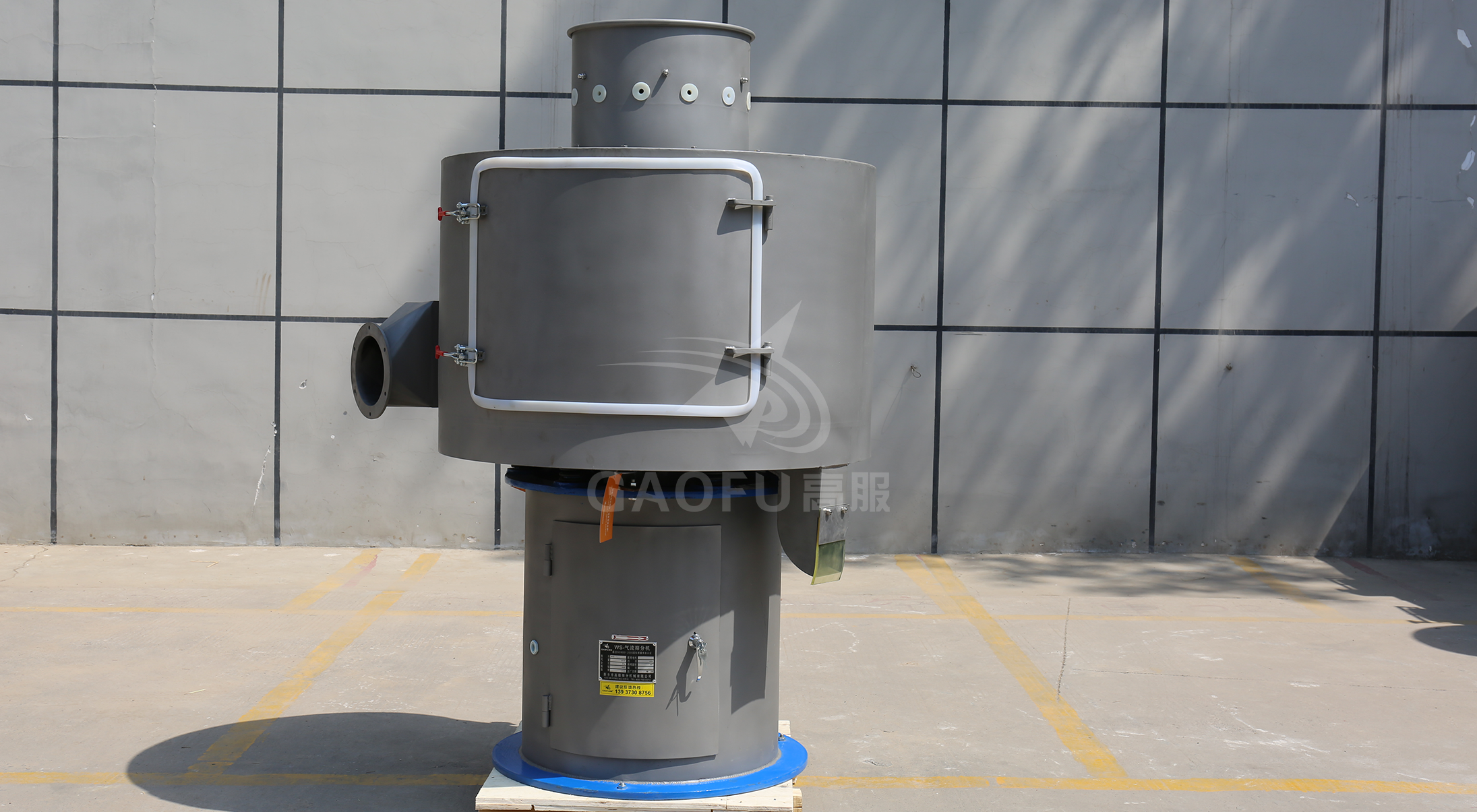

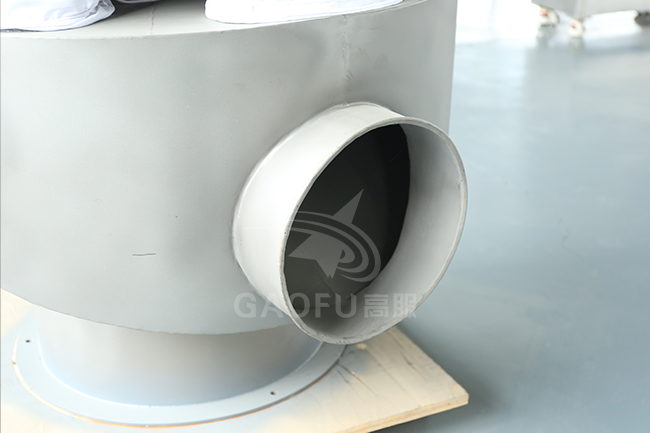

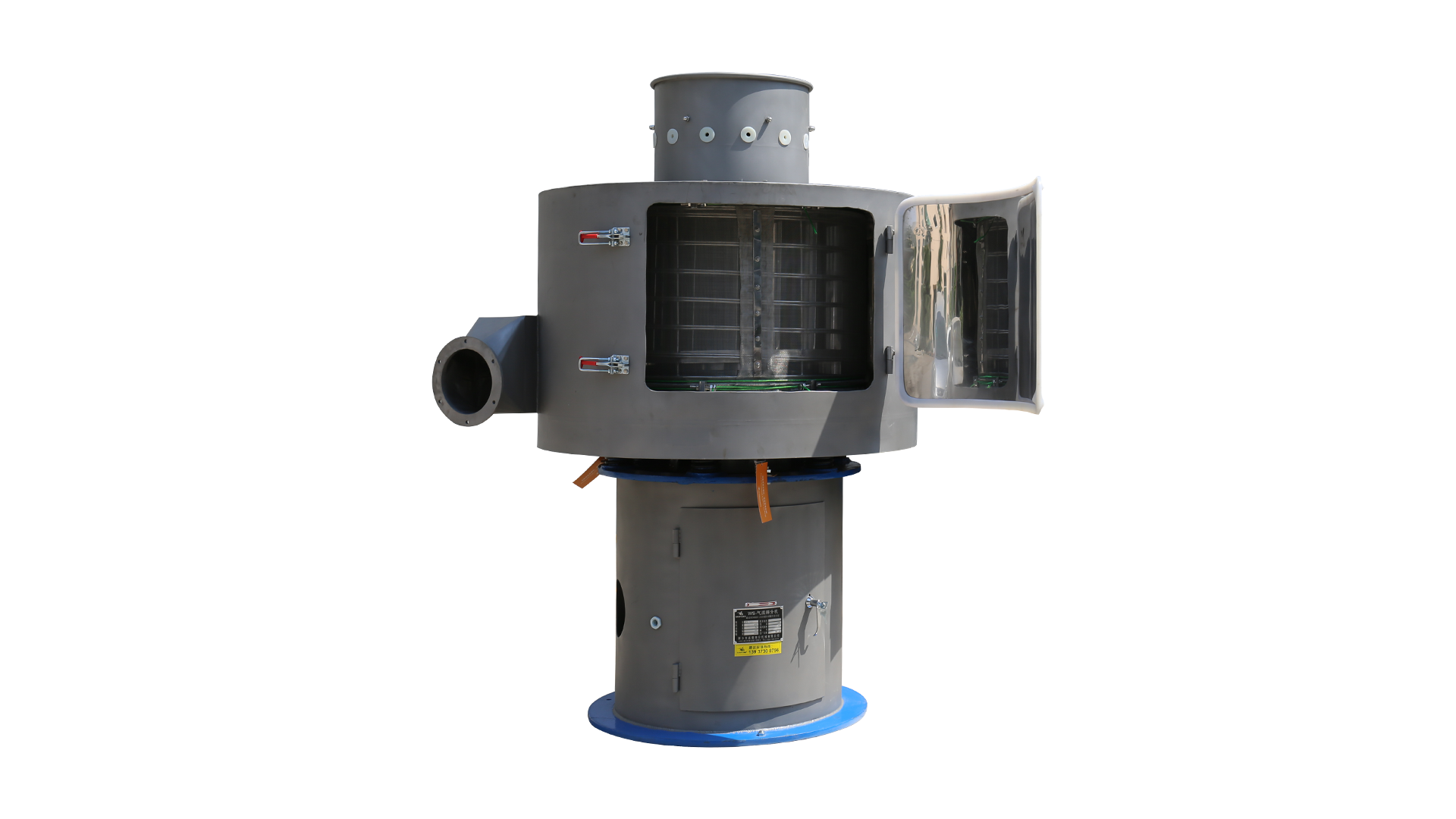

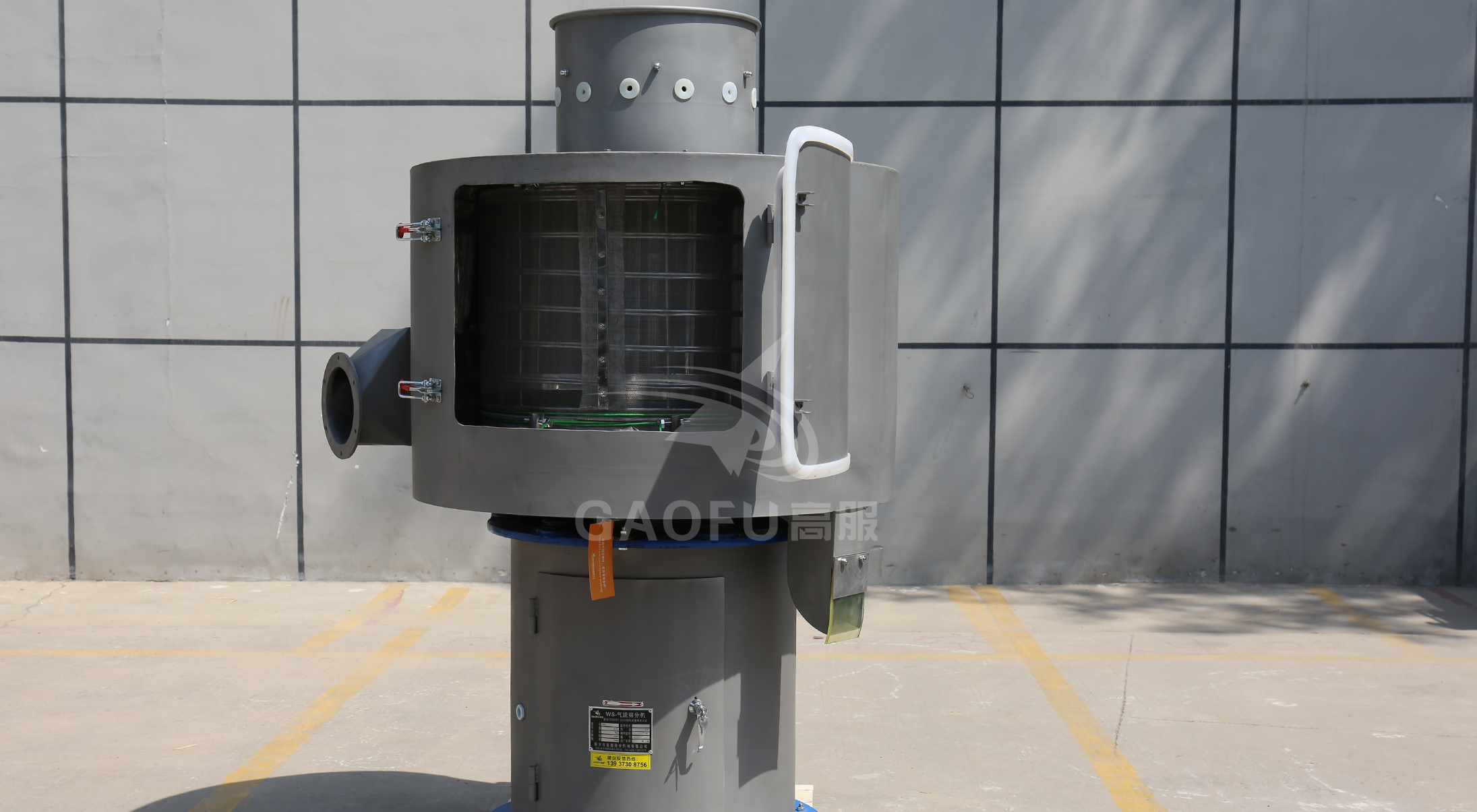

Realistic picture of vertical airflow sieve
