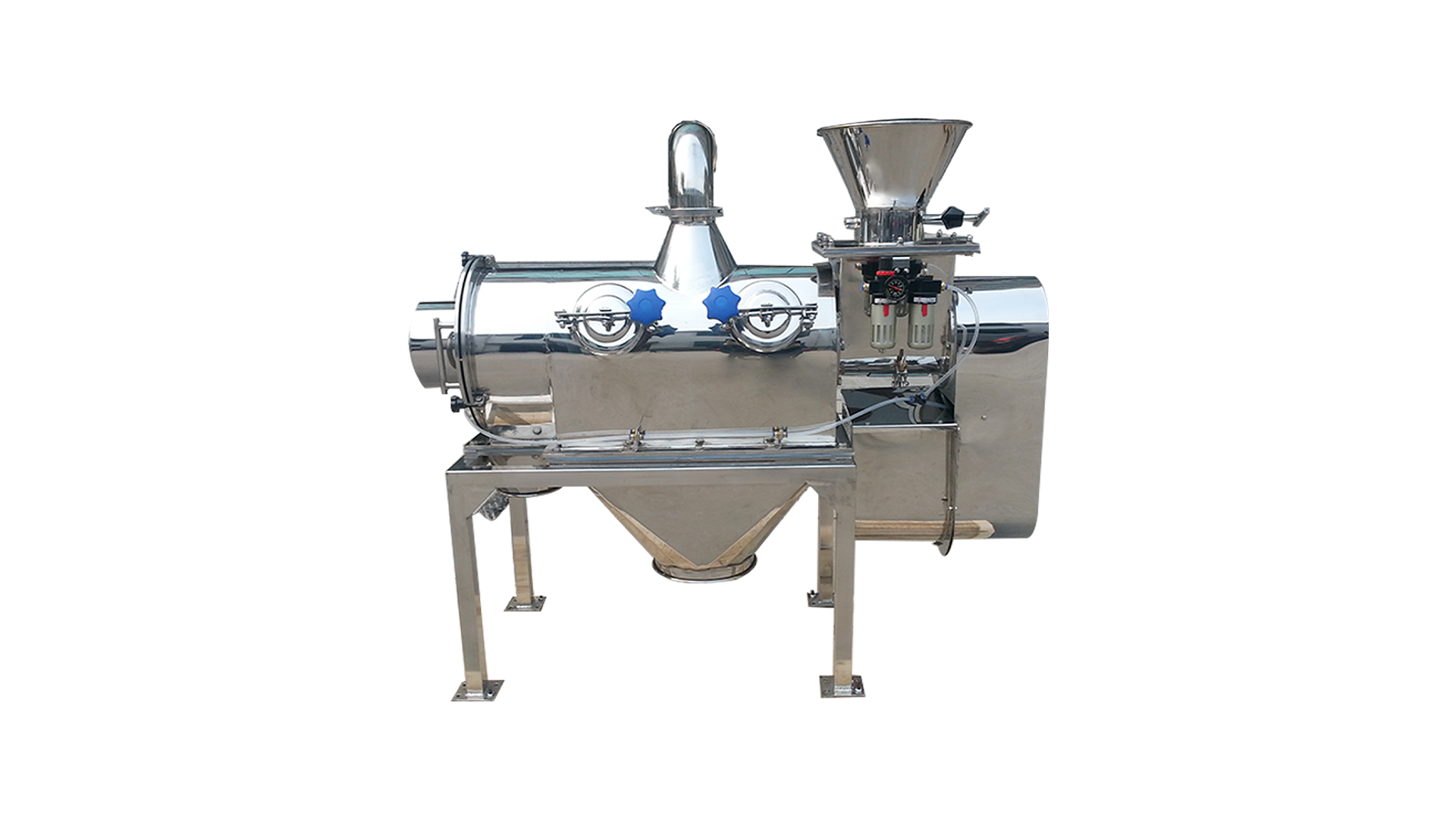

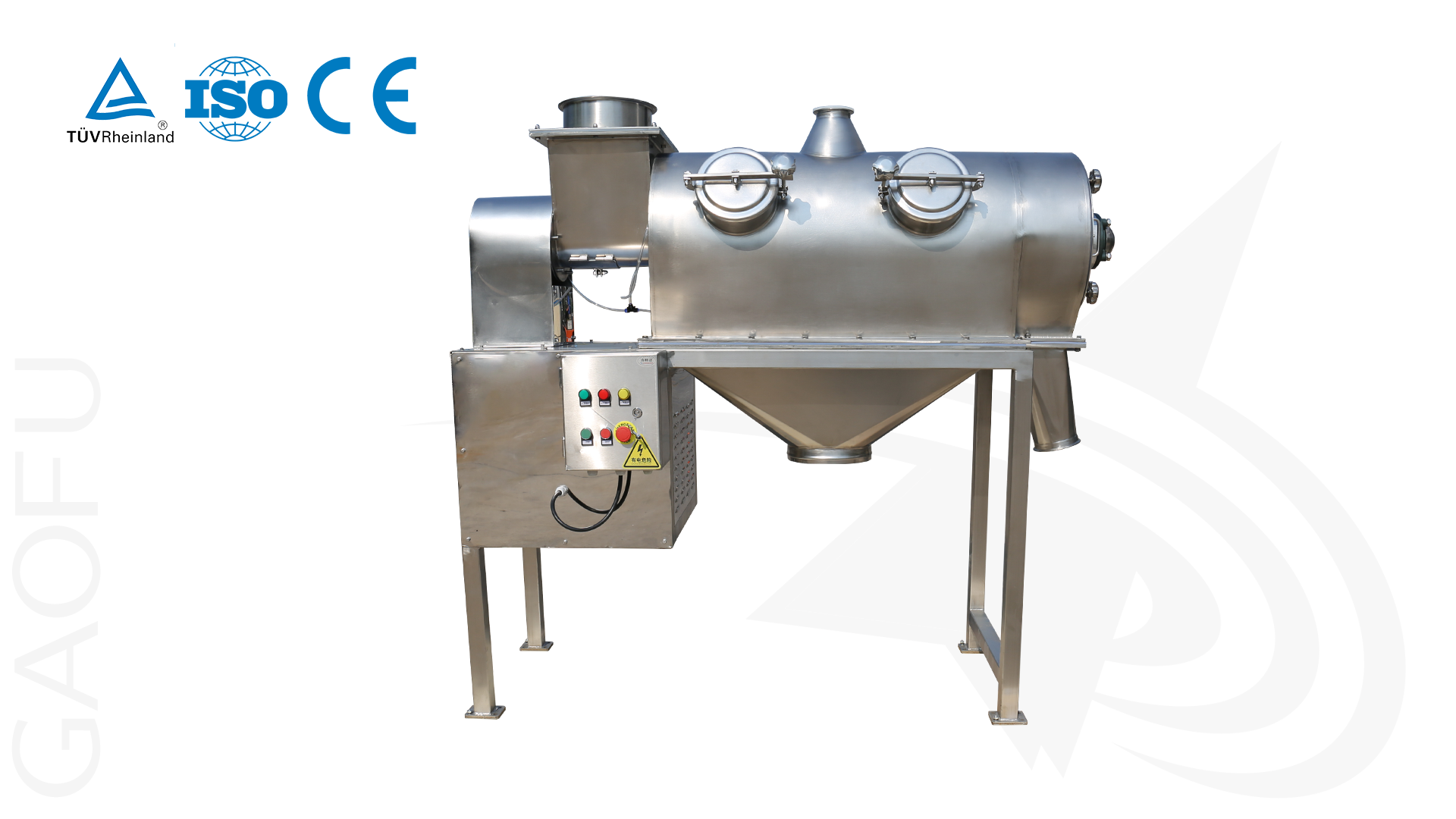

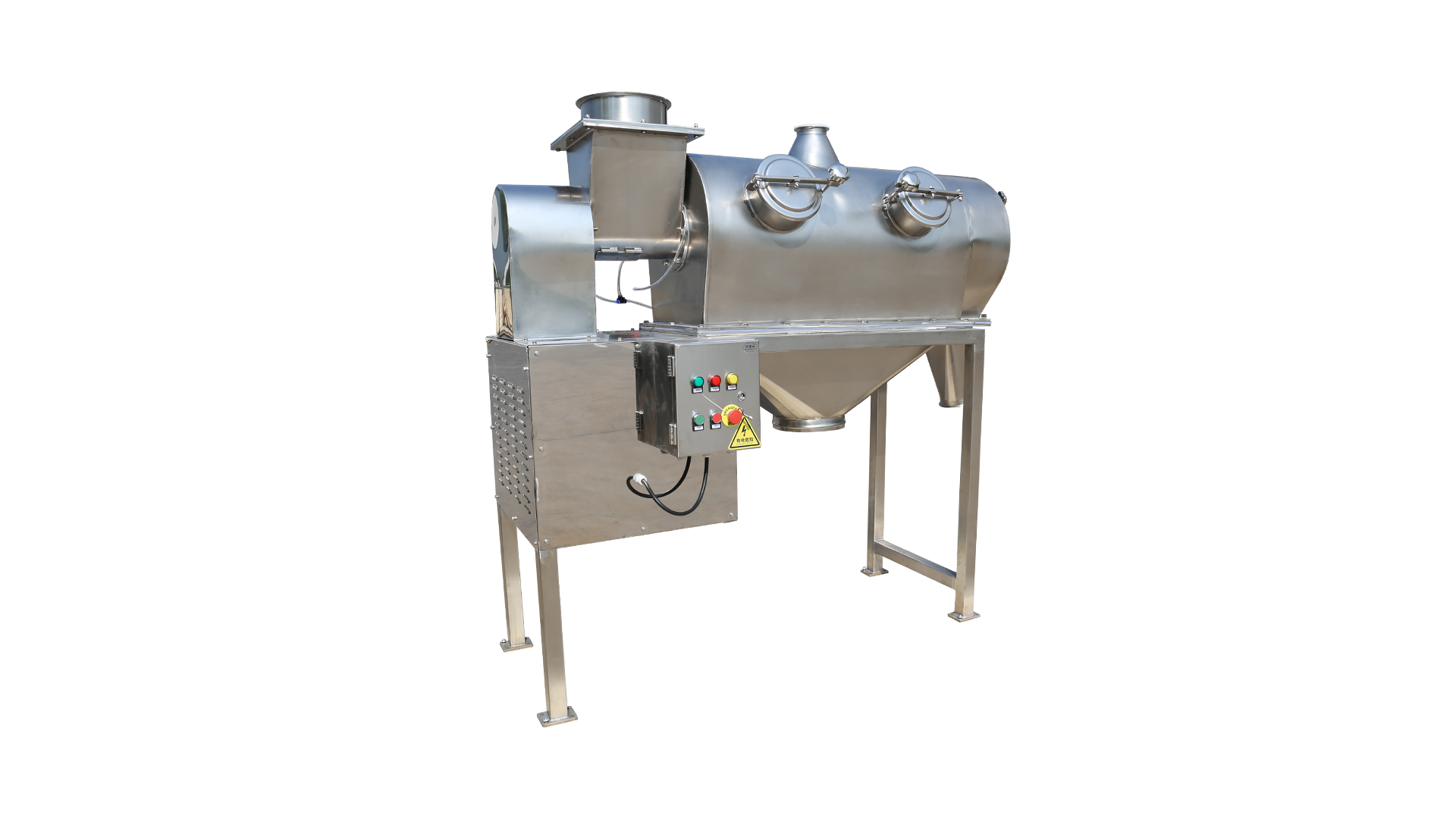

Airflow vibrating sieve

Airflow vibrating screen is a high-precision screening equipment designed specifically for ultra light and multi fiber materials. Effectively solve the problems of floating and agglomeration that are prone to occur when traditional screening equipment processes lightweight and fluffy materials such as carbon fiber, plant fiber, plastic particles, etc. The airflow vibrating screen can achieve high-precision classification, and the material screening can reach up to 400 mesh.

Airflow vibrating screen application materials

Carbon black (white carbon black), quartz powder (sand), mica, fluorescent powder, feldspar powder, kaolin, silica soil, fly ash, glass beads, environmental protection, plastics, plastics, magnetic materials, building materials, mines, kilns, feed, condiments, fish meal, Rice noodles, flour, bean powder, milk powder, egg powder, starch, granulated sugar, fruit juice, western medicine powder, Chinese medicine powder, pharmaceutical intermediates, pearl powder, soda ash, polyethylene, resin powder (PVC, epoxy), laundry powder, additives, paint, pigments, rubber, coatings, alloy powder, gold powder, silver powder, copper powder, aluminum powder, nickel powder, chromium powder, magnesium powder Zinc powder, barium powder, vanadium powder, titanium powder, strontium powder, lead powder, casting sand, etc.

Working principle of the airflow vibrating screen

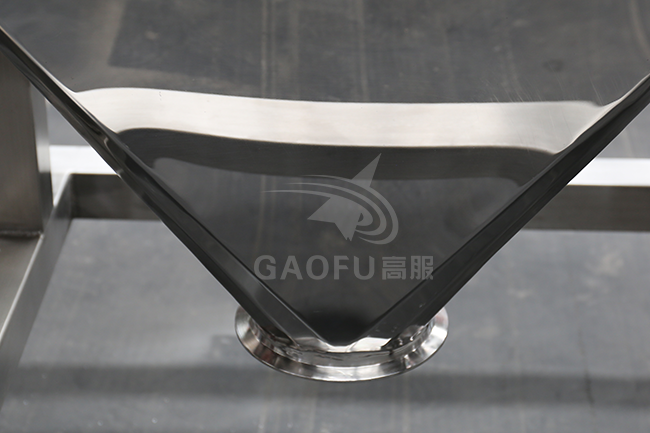

The screen of the air flow vibrating screen is cylindrical and placed in the machine body. After passing through the spiral conveying system, the material is mixed with the air flow and atomized into the mesh cylinder. The material is subjected to centrifugal force and cyclone propulsion force at the same time through the wind wheel blades in the mesh cylinder, so that the material is ejected through the mesh. The material that passes the mesh is discharged from the fine material discharge port, and the material that cannot pass the mesh is discharged from the coarse material discharge port along the cylinder wall, thereby achieving the purpose of efficient separation.

Advantages of airflow vibrating screen

The design principle of air flow screen is more suitable for screening ultra light and multi fiber materials.

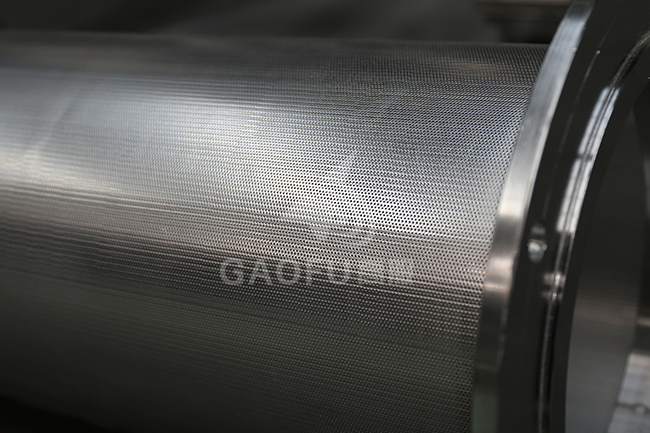

The long service life of the screen mesh is mainly due to the equipment structure, concentricity of the equipment, and processing technology of the mesh cage, which directly affect the service life of the screen mesh.
The airflow screen is easy to clean and suitable for screening multiple varieties and small batches, avoiding cross contamination of materials caused by mixing.
The airflow screen connected in series in the air duct system can withstand a pressure of 0.1MPA, suitable for positive pressure systems such as flour, and has a large screening output.
