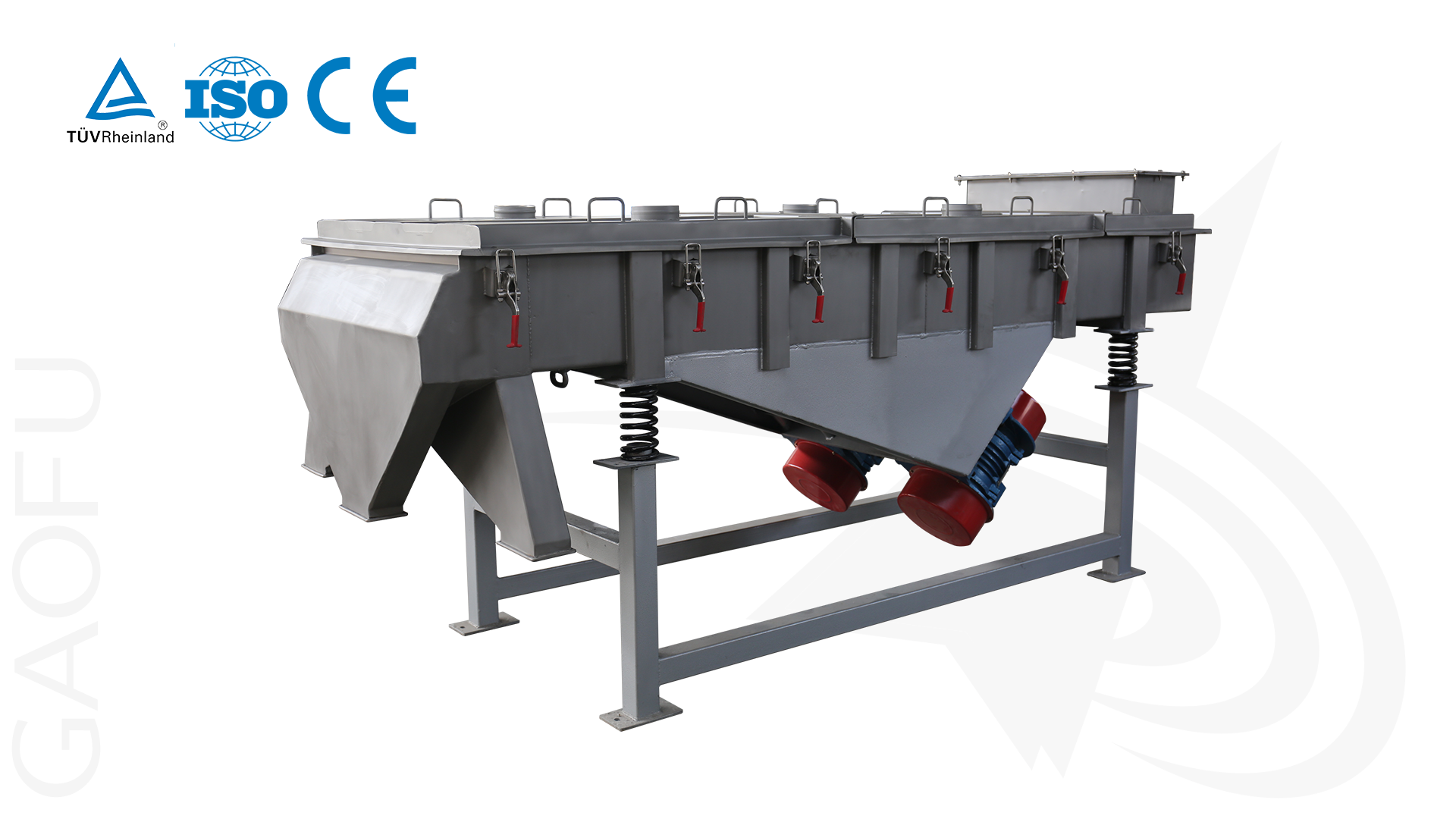

Ultrasonic linear vibrating screen

Ultrasonic linear vibrating screen is an upgraded equipment that innovatively integrates ultrasonic high-frequency vibration system on the basis of traditional linear vibrating screen. Through the synergistic effect of mechanical linear vibration and ultrasonic high-frequency resonance, the material screening efficiency is significantly improved, and the screening output is doubled. It is particularly suitable for efficient classification and impurity removal of fine powder and metal industry powder materials.

Ultrasonic linear vibrating screen application materials

Polysilicon, fused silicon powder, spherical silicon powder, silicon dioxide, sugar, salt, monosodium glutamate, chicken powder, glucose, amino acids, potassium sorbate, bread crumbs, freeze-dried food, coconut granules, frozen dumplings, granular pills, pellets, Chinese herbal medicine pieces, iron powder, aluminum powder, lead powder, copper powder, alloy powder, electrolytic copper powder, refractory materials, steel shot, alumina, metal metallurgical powder, sodium bicarbonate (soda ash), etc.

Working principle of ultrasonic linear vibrating screen

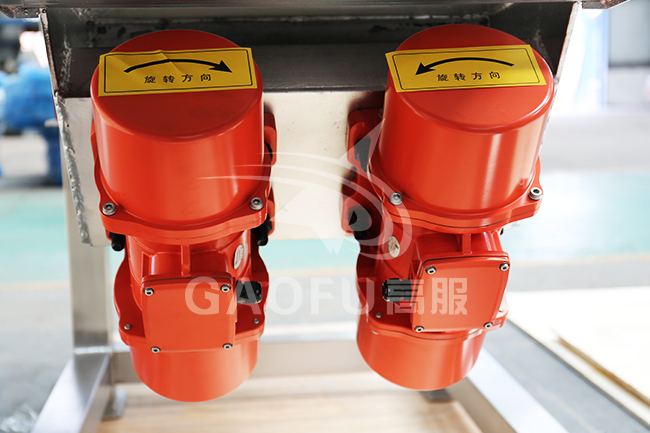

When the two vibration motors installed longitudinally on the screen body are running relatively to each other, the lateral exciting forces generated by the motors are offset by each other due to the relative running of the motors, and the longitudinal exciting forces are transmitted to the entire screen box through the vibration transmitting body, causing the screen surface to vibrate, so that the materials on the screen surface are affected by the exciting forces and jump on the screen surface toward the discharge direction. Materials smaller than the screen holes pass through the screen holes and fall to the lower layer, and flow out from the discharge port after continuous jumping. Due to the reasonable screening process, materials with several different particle sizes can be obtained after being graded by the vibrating screen, thus completing the material grading operation.

Advantages of ultrasonic linear vibrating screen

1、Various materials are graded and screened, and the particle size after screening is uniform and the screening accuracy is high.

2、A single unit can be designed with 1-5 layers, and the required number of layers can be selected according to different needs.

3、It has the advantages of convenient maintenance and relatively low probability of repair.

4、It adopts an angle-adjustable excitation source, multi-layer design, and negative pressure evacuation.

5、It has a unique effect on the screening and grading of powdery and granular materials.

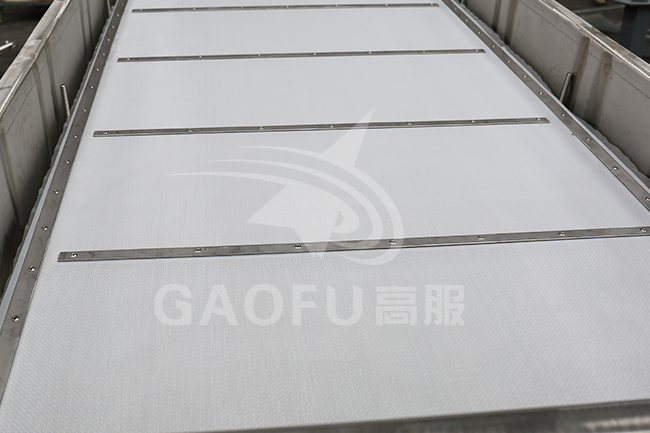

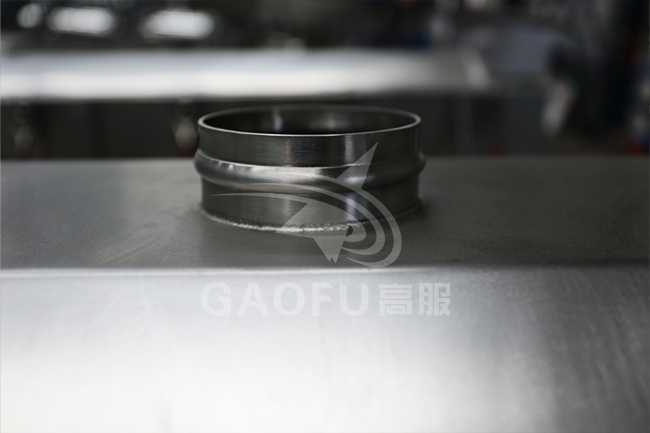

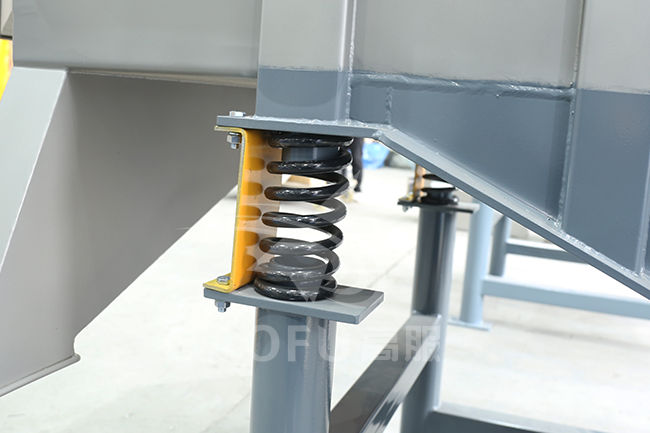

Realistic picture of ultrasonic linear vibrating screen
