Vacuum feeder

The GFZK vacuum feeder uses a vacuum pump to extract air, keeping the inlet of the suction nozzle and the entire system in a certain vacuum state. The powder particles are sucked into the nozzle along with the external air, forming a material airflow, which passes through the suction pipe to reach the hopper, where gas and material are separated. The separated materials enter the receiving equipment. Conveying and discharging are achieved through the continuous opening and closing of pneumatic three-way valves, which are controlled by the control center. The ZKS vacuum feeder is equipped with a compressed air blowback device. Each time the material is discharged, the compressed air pulse blowback the filter, knocking down the powder adsorbed on the surface of the filter, so that the suction can operate normally.

Vacuum feeder application materials

Vacuum feeder are mainly used for conveying powder and granular materials in industries such as food, pharmaceuticals, and chemicals.

Working principle of vacuum feeder

The GFZK vacuum feeder uses a vacuum pump to extract air, keeping the inlet of the suction nozzle and the entire system in a certain vacuum state. The powder particles are sucked into the nozzle along with the external air, forming a material airflow, which passes through the suction pipe to reach the hopper, where gas and material are separated. The separated materials enter the receiving equipment. Conveying and discharging are achieved through the continuous opening and closing of pneumatic three-way valves, which are controlled by the control center. The ZKS vacuum feeder is equipped with a compressed air blowback device. Each time the material is discharged, the compressed air pulse blowback the filter, knocking down the powder adsorbed on the surface of the filter, so that the suction can operate normally.

Advantages of vacuum feeder

Reduce environmental and personnel pollution of materials and improve cleanliness.

Occupying small space, it can complete powder conveying in narrow spaces, making the workspace beautiful and generous, without being limited by long and short distances.

The entire conveying process is carried out in a closed system, and there will be no powder leakage.

Easy to visually inspect, the equipment has no gaps or dead corners that are prone to material accumulation, and the surface is easy to visually inspect.

Reduce manual labor intensity and improve work efficiency.

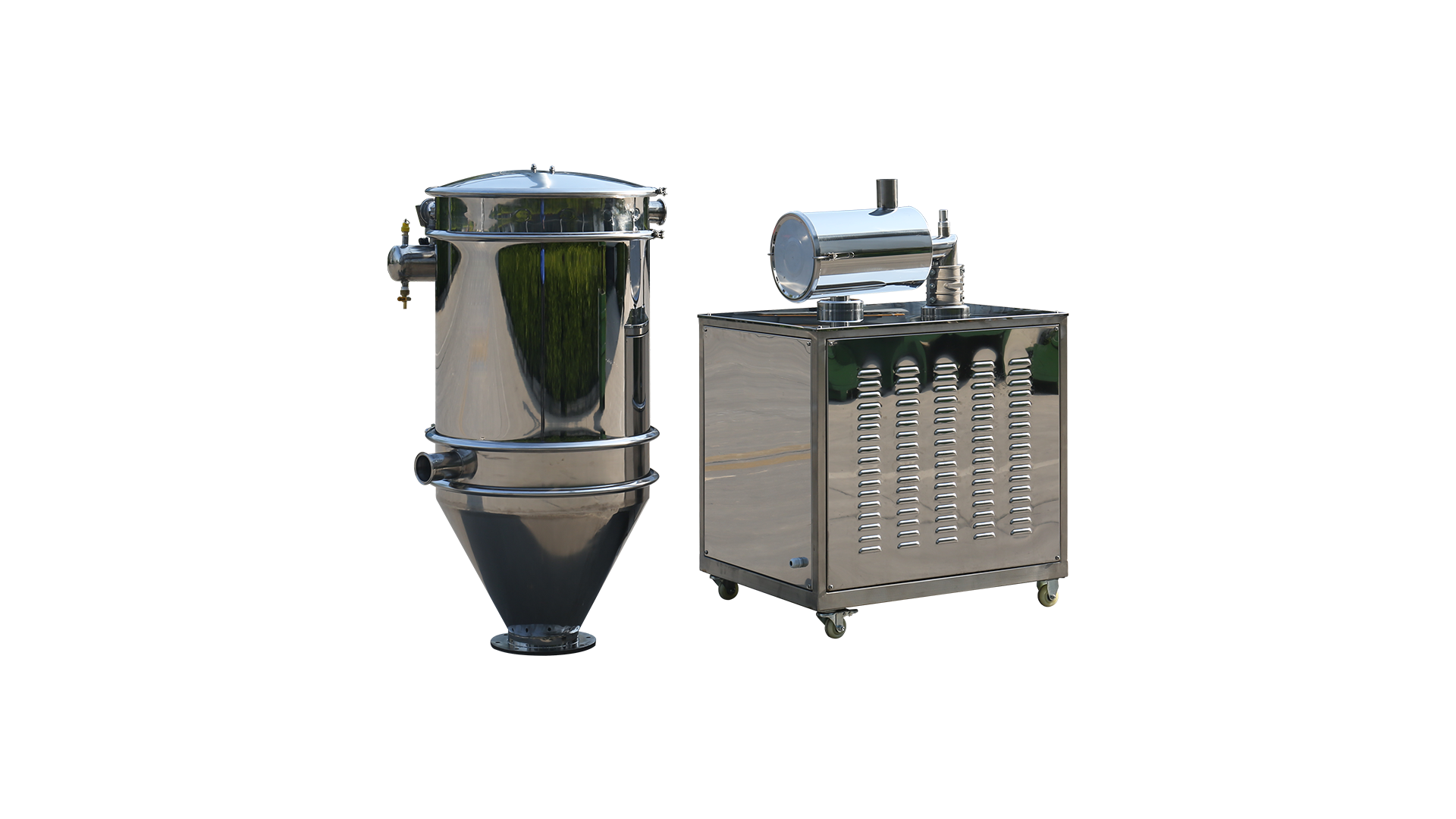

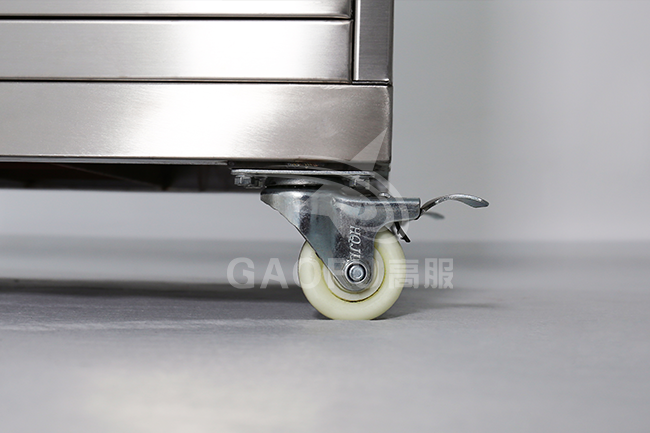

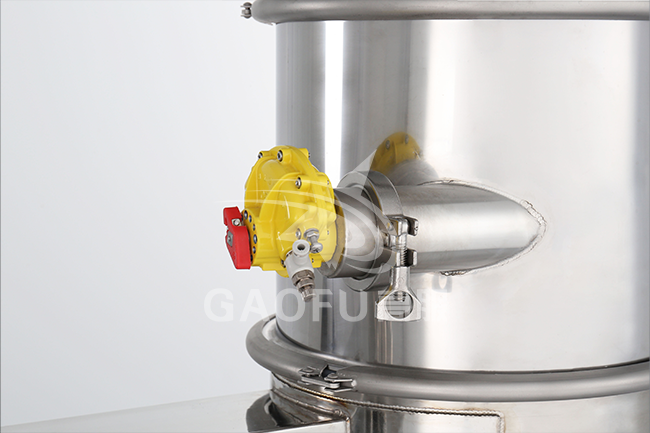

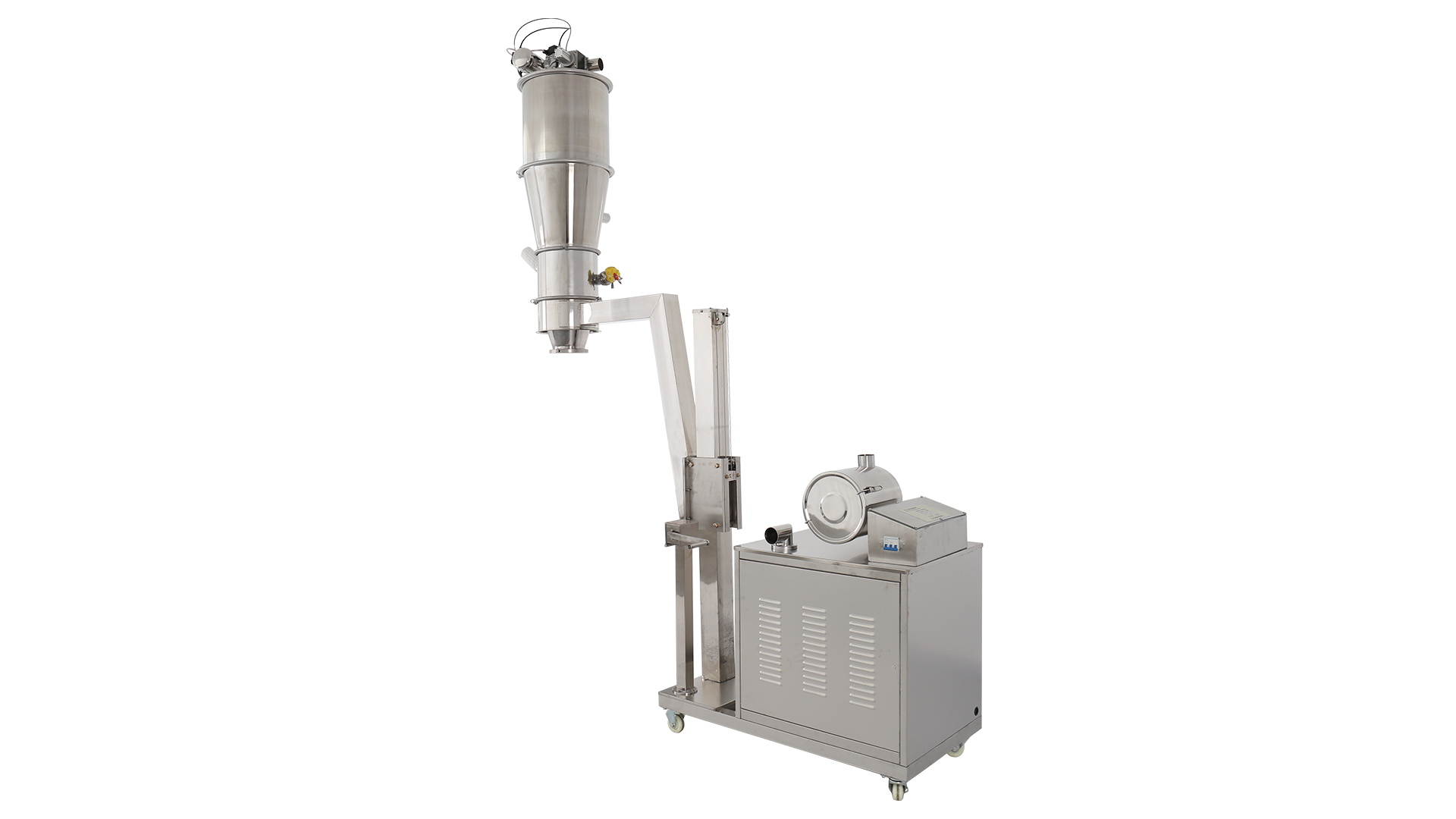

Realistic picture of vacuum feeder.

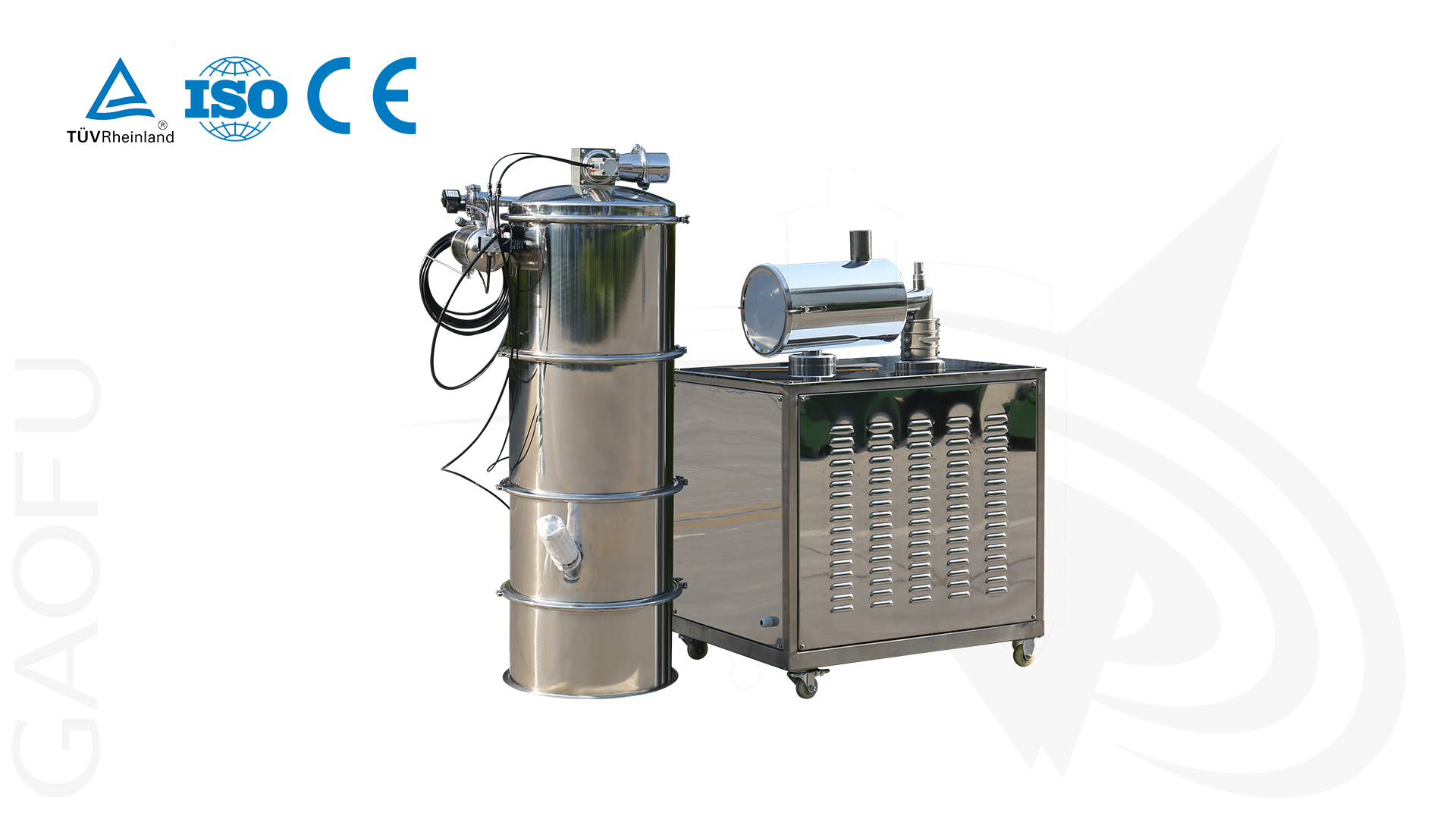

Certificate.

Gaofu factory area.
