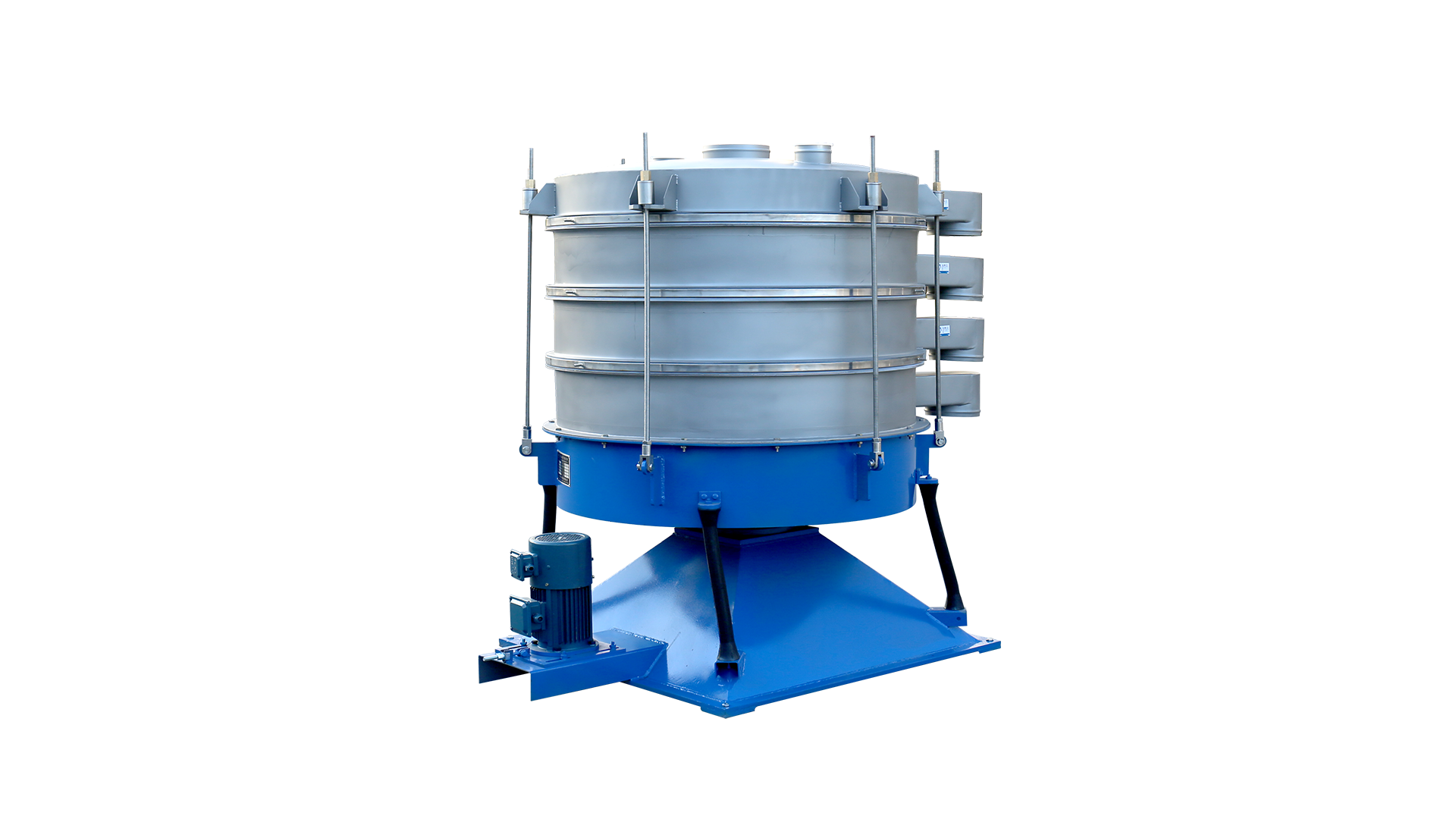

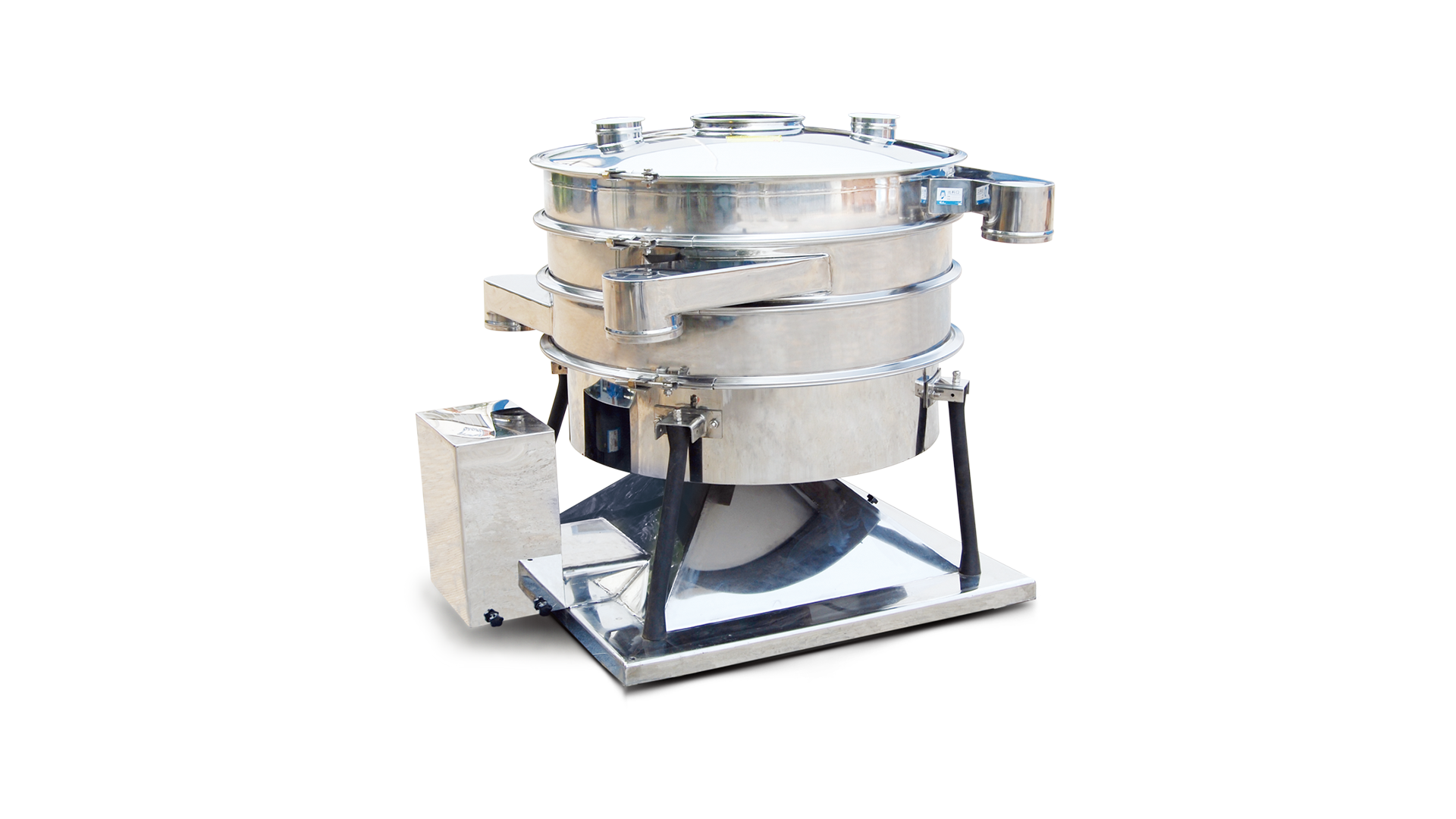

Tumbler vibrating screen

The tumbler vibrating screen adopts a unique flat rotation swing motion trajectory, effectively reducing the impact on fragile materials through flexible vibration, and significantly reducing the material damage rate during the screening process. The oscillating vibrating screen can achieve precise classification of 5-6 different particle sizes simultaneously, meeting the one-time screening needs of multi specification materials.

Tumbler vibrating screen application materials

Citric acid, milk powder, starch, sugar, vitamins, spices, tea, feed, plastics, rubber, chemical fertilizers, sugar and salt industry, renewable resources, EPS, PVI, PVC, resin, etc.

Working principle of tumbler vibrating screen

Swinging screen is a low-frequency rotary vibrating screen that simulates manual shaking. Its principle is: instantaneous motion is the synthesis of radial displacement and circular motion with this displacement as the axis (spiral motion), which can adjust the eccentricity of the exciter to produce nonlinear three-dimensional motion, and the material also produces the same motion similar to manual operation, thus achieving the purpose of screening. Combined with screening accessories, a more ideal screening effect can be obtained; Suitable for materials with circular, cylindrical, sheet-like, and even regular shapes that are prone to clogging and require precise screening.

Advantages of tumbler vibrating screen

The large swing screen can reach 5 layers and provide classification of 5-6 particle sizes, with higher production capacity.
Low frequency screening with artificial shaking effectively reduces the damage of fragile materials.
Low noise, low energy loss, with noise always maintained at 60-70dB, ensuring smooth and quiet operation.
Dustproof and environmentally friendly, GFBD swing screen does not require any auxiliary devices for air purification or dust collection. The system can come with built-in airtightness and vacuum design.
