In advanced ceramics and high-tech material industries, zirconia (zirconium dioxide, ZrO₂) stands out for its exceptional strength, thermal stability, and corrosion resistance. Widely used in applications such as dental ceramics, fuel cells, and structural components, the quality and purity of zirconia powder are critical to its performance. However, the physical properties of zirconia powder—such as strong cohesion, high static charge, and ultrafine particle size—make it one of the most challenging materials to screen efficiently using traditional methods.
Enter the ultrasonic vibrating screen—a game-changing solution that not only overcomes these screening difficulties but also doubles the screening efficiency while achieving superior impurity removal.
The Challenge of Screening Zirconia Powder
Zirconia powder often exhibits a set of complex material behaviors:
High Cohesion and Agglomeration: Fine zirconia particles tend to clump together due to van der Waals forces and static charge, making separation difficult.
Strong Electrostatic Properties: High levels of static electricity can cause particles to cling to the screen mesh or each other.
High Density and Fine Particle Size: These properties make it difficult for the powder to pass through fine mesh sizes consistently, increasing the risk of mesh blockage and product loss.
These characteristics lead to frequent mesh clogging, inconsistent particle separation, and reduced yield in conventional vibratory screening systems.

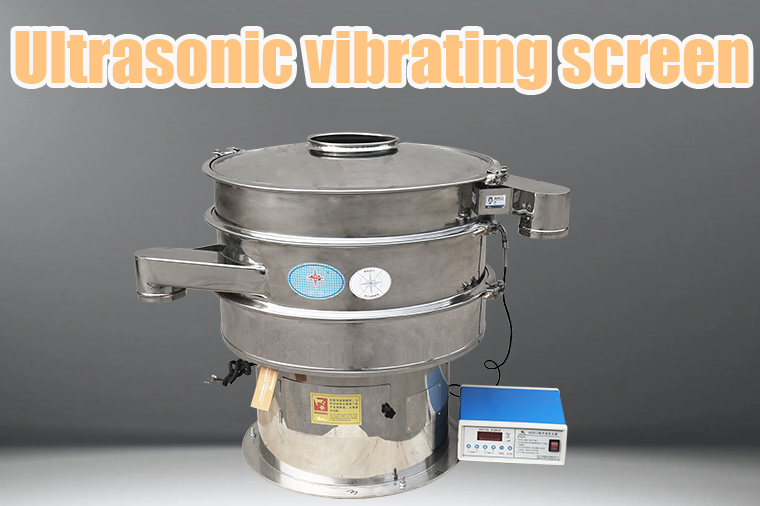

Ultrasonic Vibrating Screens: A Powerful Screening Upgrade
Ultrasonic vibrating screens offer a breakthrough in addressing the unique challenges posed by zirconia and other similar powders. This advanced screening technology integrates ultrasonic frequency vibration on top of the conventional low-frequency rotary motion, resulting in a dynamic and highly efficient screening process.
Key Advantages for Zirconia Powder Screening:
Doubled Screening Efficiency: Compared to traditional screens, the ultrasonic vibrating screen significantly enhances powder throughput and sieving precision. This is particularly crucial when processing high-value materials like zirconia, where time and material yield directly impact production costs.
Effective Anti-Clogging Mechanism: The high-frequency ultrasonic vibration (typically 35–40 kHz) breaks apart cohesive clumps and prevents particles from sticking to the mesh. This not only avoids downtime for cleaning but also maintains consistent screening accuracy.
Handling of Ultra-Fine and Electrostatic Powders: The ultrasonic energy neutralizes the effects of static electricity and surface tension. This makes it possible to screen powders with sizes down to the micron or sub-micron level without material build-up.
Improved Product Purity: By enabling more precise removal of contaminants and oversize particles, the ultrasonic screen ensures a higher level of product purity—critical for applications where zirconia is used in medical, electronic, or structural components.
Adaptability to Difficult Powders: Beyond zirconia, the system is highly effective for other difficult-to-screen materials, including those with high viscosity, stickiness, or electrostatic properties.
Internal Design for Contamination-Free Processing
The internal components of the ultrasonic vibrating screen are specially treated and constructed to avoid introducing metallic contaminants during screening. This is particularly valuable when processing materials intended for high-purity environments, such as in biomedical or aerospace applications.
